Caliper Calibration

What Is a Caliper, and Why Caliper Calibration Matters

Calipers are precision instruments used to measure the dimensions of objects with high accuracy. Whether you're determining the thickness of a medical implant, verifying the diameter of an aerospace fastener, or measuring lab equipment in a biotech facility, calipers provide critical data that directly impacts product quality and compliance.

There are several types of calipers, such as vernier, dial, and digital, but all require regular caliper calibration to ensure reliable, traceable measurements. Digital caliper calibration, in particular, is essential for environments that demand consistent, high-resolution readings across complex parts and assemblies.

In industries where even minor deviations can lead to performance issues or regulatory concerns, precision is not optional. Accurate measurement through proper calibration supports compliance with quality standards such as ISO 17025 and ensures that components perform as intended in high-stakes applications.



Types of Calipers and Calibration Methods

Calipers come in a variety of designs, each suited to specific measurement tasks in industries like aerospace, biotechnology, and medical device manufacturing. Regardless of type, all calipers require routine calibration to maintain the precision demanded by critical applications.

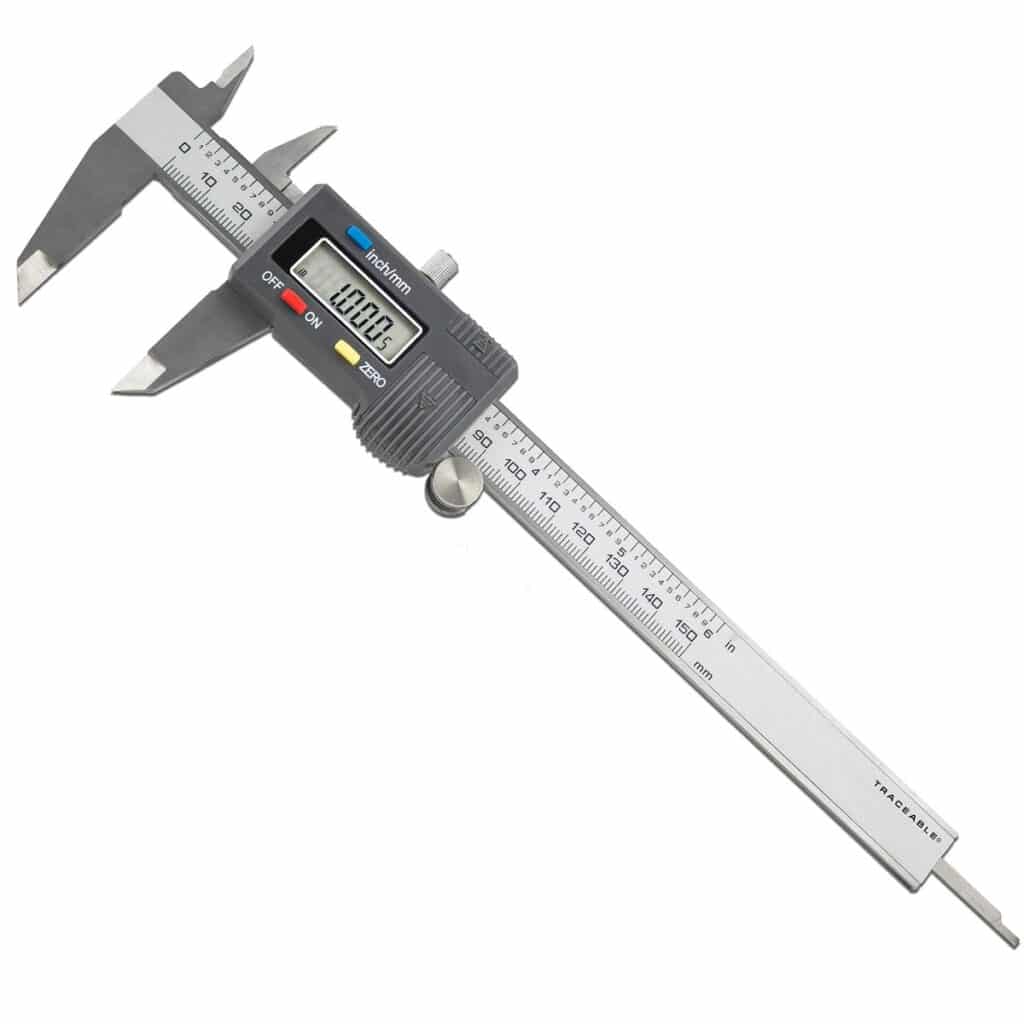

Digital Calipers

These calipers feature electronic displays and often include data output capabilities for integration with quality control systems. While convenient and highly accurate, digital models still require regular calibration to ensure continued reliability.

Dial Calipers

Known for their analog dial indicators and durable, shock-resistant construction, dial calipers are widely used in shop-floor environments. Dial caliper calibration ensures the mechanical gear system and pointer readings remain accurate over time.

Vernier Calipers

Traditional and highly precise, vernier calipers rely on manual scale interpretation. Despite their simplicity, they require specialized procedures for vernier caliper calibration to verify accuracy down to fine measurement increments.

Specialty Calipers

These include depth calipers, inside calipers, outside calipers, and offset calipers—each designed for specific dimensional measurements that standard calipers may not accommodate. Calibration for these tools helps ensure consistency across complex geometries.

Calibration services typically support a wide range of leading caliper manufacturers, including Mitutoyo, Starrett, Brown & Sharpe, and SPI.



Why Caliper Calibration Is Essential

Calipers are relied upon for high-precision measurements in critical industries, but like any precision instrument, their accuracy can degrade over time. Regular calibration is necessary to detect and correct errors that may otherwise go unnoticed—especially in applications where tight tolerances are non-negotiable.



Common Causes of Accuracy Degradation

Several factors can affect caliper performance:

  • Mechanical wear from frequent or heavy use
  • Environmental conditions, such as fluctuations in temperature or humidity
  • Physical damage from accidental drops or impacts
  • Contamination on the sliding surfaces or measuring jaws

These influences can lead to measurement drift, making reliable caliper calibration services essential to maintaining control over quality processes.



Meeting Industry and Regulatory Requirements

Many sectors are governed by strict quality expectations that rely on traceable measurement accuracy. Calipers used in these settings must be calibrated according to recognized standards:

  • Medical Device Manufacturing: Demands high-precision measurements for safety-critical components
  • Aerospace & Defense: Must comply with AS9100 quality system requirements
  • General Manufacturing: Often follows ISO 9001 standards, requiring documented calibration procedures

Proper calibration against recognized caliper calibration standards helps ensure measurement traceability, product reliability, and audit readiness in regulated environments.



Comprehensive Caliper Calibration Process

Accurate caliper measurements are critical in regulated industries like aerospace, biotechnology, and medical device manufacturing. To maintain confidence in every reading, calibration must follow a consistent, standards-based approach. The following caliper calibration procedure is based on the ASME B89.1.14 standard, which outlines best practices for dimensional measurement accuracy.



Pre-Calibration Inspection

Before any measurement checks are performed, the caliper undergoes a thorough inspection:

  • Visual examination for physical damage, contamination, or signs of wear
  • Cleaning and preparation of measuring surfaces and moving parts
  • Basic functionality testing to verify smooth operation and jaw alignment



Zero Verification

A critical step in understanding how to calibrate calipers is confirming the accuracy of the zero setting:

  • Closed-jaw zero setting is verified against a known reference
  • Repeatability testing involves multiple open/close cycles to ensure stable readings



External Measurement Calibration

To verify linear accuracy across the caliper’s full range:

  • Multi-point calibration is performed using certified gage blocks
  • Measurements are tested at 25%, 50%, 75%, and 100% of the instrument’s measuring range
  • Jaw parallelism is evaluated to ensure even contact with reference standards



Internal Measurement Testing (if applicable)

For calipers with internal jaws:

  • Master ring gages are used to check inside measurement accuracy
  • The condition of internal jaws is inspected for wear, nicks, or misalignment



Depth Measurement Calibration (if applicable)

Depth-measuring calipers are verified using:

  • Surface plates in combination with gage blocks to confirm vertical accuracy

Following a structured caliper calibration procedure not only ensures compliance with quality standards but also extends instrument life and prevents measurement-related errors in production environments.



Precision Standards and Calibration Equipment

High-accuracy caliper calibration depends on more than just skilled technicians—it requires tightly controlled environments and traceable reference standards. Whether you're looking for caliper calibration near me or simply exploring how quality is maintained in dimensional labs, understanding the tools and conditions used in calibration is essential.



Reference Standards Used

To ensure reliable, traceable results, calibration is performed using certified, high-precision equipment:

  • NIST-traceable gage blocks (Grade 2 or better) for external measurement verification
  • Master rings and pin gages for internal jaw calibration
  • Precision surface plates to support depth and height measurements
  • Environmental monitoring systems to control temperature and humidity

These tools meet or exceed the requirements set by national and international metrology standards, providing a strong foundation for accurate calibration.



Measurement Uncertainty and Environmental Control

Achieving precise and repeatable measurements also requires minimizing uncertainty:

  • Calibration processes are designed to produce typical uncertainties in line with industry expectations for caliper accuracy
  • Variables such as equipment condition, technician technique, and setup alignment can all influence outcomes
  • Temperature stabilization is critical, as even minor variations can affect dimensional readings

Understanding these precision factors can help guide your search when evaluating caliper calibration near you, especially in industries where measurement confidence directly impacts product safety and regulatory compliance.



Industry-Specific Applications of Caliper Calibration

Caliper calibration plays a critical role across several high-precision, high-stakes industries. Each sector presents unique measurement challenges and regulatory requirements, making reliable calibration essential to ensuring safety, compliance, and performance.



Medical Device Manufacturing

In the medical device industry, precision and traceability are paramount. Calipers are routinely used to verify component dimensions at various stages of production, where accuracy can directly impact patient safety.

  • FDA Compliance Requirements: Devices must meet stringent regulatory standards, including documentation of traceable measurement equipment.
  • Critical Dimension Verification: Even small dimensional deviations in implants or surgical instruments can lead to device failure or regulatory rejection.
  • Biocompatible Material Measurement: Accurate measurements help ensure that materials used are compatible with biological systems and meet design intent.



Aerospace & Defense

Aerospace and defense manufacturing demands extreme precision and consistent performance under challenging conditions. Caliper calibration supports the quality control processes needed to meet these expectations.

  • Precision Component Manufacturing: Aircraft and defense systems include parts with very tight dimensional tolerances that must be verified with traceable tools.
  • Military Specification Compliance: Components must meet rigorous MIL-SPEC and AS9100 standards, which require calibrated measuring equipment.
  • Safety-Critical Part Inspection: From turbine blades to electronic housings, many parts are mission-critical and cannot tolerate dimensional error.



Biotechnology

In biotech applications, accuracy in measurement directly influences experimental results, product consistency, and data integrity. Caliper calibration supports the reliability of instruments used in both R&D and production settings.

  • Laboratory Equipment Calibration: Calipers are used to verify the dimensions of fixtures, holders, and test platforms.
  • Research Instrumentation Accuracy: Consistent measurements ensure repeatability and accuracy in sensitive experimental setups.
  • Quality Control Applications: As biotech operations scale, dimensional quality control becomes vital for maintaining batch-to-batch consistency.



Calibration Frequency and Scheduling

Establishing the right calibration interval is essential to maintaining measurement accuracy and compliance with quality standards. While a general 12-month cycle is common, the ideal schedule can vary based on how and where the tool is used—including micrometers, vernier calipers, and digital instruments.

For tools such as micrometers that measure extremely tight tolerances, a consistent micrometer caliper calibration schedule helps ensure reliability in demanding applications.



Standard Calibration Intervals

For most dimensional tools in standard environments, a 12-month calibration cycle is recommended. This interval aligns with many industry best practices and quality system requirements.



Factors That Influence Calibration Frequency

Certain conditions may require more frequent calibration to ensure measurement confidence:

  • Usage intensity and environment: Frequent use or exposure to harsh shop conditions can accelerate wear
  • Criticality of measurements: High-risk or regulated components may demand tighter control
  • Historical performance data: Tools with a history of drifting out of tolerance may need shorter intervals



Usage-Based Recommendations

Based on industry observations, here are some general guidelines:

  • High-use production environments: Calibrate every 6 months to minimize drift-related risks
  • Laboratory or quality control settings: 12-month intervals typically offer sufficient accuracy
  • Occasional-use tools or backup equipment: 24-month intervals may be acceptable with proper handling and storage



Consistent micrometer caliper calibration as part of a broader metrology program ensures measurement traceability, reduces rework, and supports audit readiness across regulated industries.



Common Calibration Issues and Solutions

Precision tools like calipers are subject to wear and environmental influences that can compromise their accuracy over time. Understanding common calibration issues can help prevent errors and extend tool life.

  • Zero Drift Problems
    Zero drift occurs when the caliper fails to return to a true zero reading, often due to contamination, worn components, or improper handling. Regular cleaning and recalibration are key to restoring accuracy.
  • Jaw Parallelism Issues
    Misaligned jaws can result in uneven contact and inconsistent measurements. These issues are typically detected through multi-point testing and corrected with mechanical adjustments or part replacement.
  • Mechanical Wear Indicators
    Signs of wear such as loose sliders, damaged jaws, or degraded surfaces signal that maintenance may be needed. In some cases, repair is possible, while more severe wear may require replacement.
  • Environmental Factors
    Temperature fluctuations, high humidity, and vibration can all impact measurement stability. Controlling these conditions in both storage and calibration environments is essential for reliable results.
  • Handling Best Practices
    Proper storage, gentle handling, and regular cleaning can significantly reduce the risk of damage. Avoid dropping the instrument or exposing it to harsh conditions to maintain long-term performance.



Calibration Certificate and Documentation

Accurate calibration isn’t complete without proper documentation. A well-prepared calibration certificate provides traceability, transparency, and proof of compliance for regulated industries such as aerospace, biotechnology, and medical device manufacturing.

  • Certificate Contents
    Each calibration certificate typically includes key information to validate the results and support quality assurance:

    • As-found and as-left data, showing measurement conditions before and after calibration
    • Measurement uncertainty statements, outlining the accuracy limits of the results
    • Environmental conditions during calibration, such as temperature and humidity
    • The NIST traceability chain, confirming reference standards used in the process
  • Record Keeping Requirements
    Maintaining complete calibration records is essential for ongoing compliance and internal quality systems:

    • Calibration history tracking to monitor tool performance over time
    • Trend analysis capabilities for identifying measurement drift or recurring issues
    • Audit trail documentation to support external inspections and quality audits

Proper documentation not only supports traceability, it also strengthens confidence in your measurement system’s integrity.



On-Site vs. Laboratory Calibration

When it comes to calibrating precision tools like calipers, both on-site and laboratory calibration options offer distinct advantages depending on your operational needs.

  • Laboratory Calibration Advantages
    Laboratory environments offer tightly controlled conditions, typically maintained at 20°C ± 1°C, which help ensure consistency and repeatability in measurements. Specialized calibration equipment and highly stable setups contribute to lower measurement uncertainty, making lab calibration ideal for tools that require the highest level of precision.
  • On-Site Calibration Benefits
    On-site calibration, on the other hand, minimizes equipment downtime and eliminates the risk of damage during transportation. It also provides immediate results, allowing teams to return to production quickly with calibrated instruments in hand. On-site services are especially useful in high-volume or critical-path operations where turnaround time is a priority.
  • Service Area Coverage
    For organizations operating across multiple sites or in regulated industries, consistency in calibration matters just as much as precision. SIMCO supports that need through its nationwide laboratory network, offering both on-site and lab-based services wherever they're needed. With strategically located facilities and mobile calibration teams, SIMCO helps ensure that high-quality, standards-based calibration is accessible coast to coast, reducing downtime, simplifying logistics, and supporting enterprise-wide compliance.



Frequently Asked Questions About Caliper Calibration

Understanding the calibration process helps ensure that your measurement tools remain accurate, compliant, and ready for use in critical environments. Below are answers to some of the most common questions about caliper calibration.



How do I know when my calipers need calibration?
Calipers should be calibrated at regular intervals based on usage, environment, and industry requirements. Signs that calibration may be needed sooner include inconsistent readings, difficulty zeroing, or visible wear on measuring surfaces.



What’s the difference between verification and calibration?
Verification is a quick check to confirm that the caliper is performing within acceptable limits, often done in-house. Calibration is a more thorough process performed using certified reference standards to measure and adjust accuracy, with documented results and traceability.



Can damaged calipers be repaired during calibration?
Yes, in many cases minor damage—such as worn jaws, loose sliders, or contaminated surfaces—can be cleaned or adjusted during the calibration process. If the damage is severe, replacement may be recommended.



What accuracy can I expect from calibrated calipers?
Accuracy depends on the type of caliper and the quality of the calibration. Typically, calibrated calipers will meet or exceed manufacturer specifications, with measurement uncertainty documented on the calibration certificate.



How should I store calibrated calipers?
Store calibrated calipers in a clean, dry, and temperature-stable environment, preferably in a protective case. Avoid exposure to moisture, dust, and vibration, which can degrade performance over time.



What happens if my calipers fail calibration?
If a caliper fails calibration, it will typically be flagged as out of tolerance. Depending on the severity of the deviation, the instrument may be adjusted, repaired, or replaced. Calibration records should reflect both the "as-found" and "as-left" conditions for full traceability.
