Thread Plug Gage Calibration Services

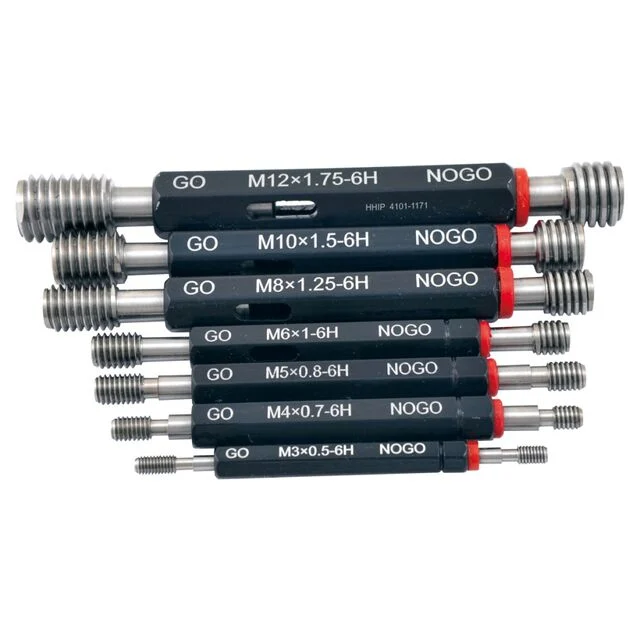

What is a thread plug gage and what does it do?
Thread plug gages are essential tools for verifying the accuracy of threaded components in precision manufacturing—especially in “lives at stake” industries like aerospace, medical device production, and biotechnology. In these high-risk sectors, precision measurement isn’t optional—it’s mission-critical. Reliable thread plug gage calibration ensures that fasteners, implants, and equipment meet the most exacting standards, supporting critical manufacturing processes where failure is not an option. With a strong focus on proper documentation and full traceability, accurate thread plug calibration plays a vital role in maintaining compliance, avoiding costly setbacks, and protecting lives through uncompromising quality.
Types of Thread Plug Gages
Our thread gage calibration services cover a wide range of thread plug gage types, ensuring accuracy and compliance for virtually any application. Whether you're working with aerospace components, biotech equipment, or high-performance fasteners, our experts provide precise thread plug gage testing across standard and custom gage formats.
We Calibrate the Following Thread Types:
- Unified National (UN) threads
- Metric (M) threads
- British Standard Pipe (BSP) threads
- National Pipe Thread (NPT)
- ACME and Buttress threads
Gage Configurations Supported:
- Go/No-Go combination gages
- Individual Go or No-Go gages
- Thread setting plugs (W-tolerance)
- Special and custom thread forms
Size Range:
- From M1 (1mm) up to 6 inches in diameter
Why Thread Plug Gage Calibration Is Critical
Accurate thread calibration services are essential for maintaining product quality, regulatory compliance, and operational efficiency. Calibrating thread plug gages—including precise pitch diameter calibration—helps ensure threaded components perform reliably under real-world conditions.
Quality Control in Manufacturing
- Verifies that threaded parts meet design specifications
- Prevents costly assembly failures and product recalls
- Ensures compatibility and interchangeability across parts and systems
Compliance with Industry Standards
- Meets FDA 21 CFR Part 820 requirements for medical devices
- Supports AS9100 compliance in aerospace manufacturing
- Ensures ISO 9001 traceability in quality management systems
- Aligns with MIL-STD specifications for military applications
Reducing Operational Risk and Cost
- Minimizes part rejection rates during inspection
- Helps prevent failures in the field
- Reduces the financial impact of warranty claims and rework
Consistent and accurate calibration of thread gages isn't just a best practice—it's a strategic safeguard for high-stakes manufacturing.
Thread Plug Gage Calibration Process
Precision begins with process. Our thread measuring calibration procedures follow ASME B1.2 and B1.3 standards to ensure full compliance and accuracy. Every gage undergoes a rigorous, multi-step protocol that includes dimensional analysis, environmental control, and certified measurement tools. The result? Consistent, traceable accuracy with every thread plug gage verification.
Step 1: Pre-Calibration Inspection
- Visual check for damage, contamination, or wear
- Thread form inspection for burrs, nicks, and deformation
- Handle security and structural integrity review
- Cleaning and preparation for precise measurement
Step 2: Major Diameter Measurement
- Precision bench micrometers with custom anvils
- Multi-point measurement across the thread length
- Tolerance: 4.0µ" (0.1µm) parallelism or better
- Resolution: 10µ" (2.5µm) or better
- Gaging force applied per ANSI/ASME B1.2 standards
Step 3: Pitch Diameter Calibration (Three-Wire Method)
- Calculated best-size wire: W = 0.57735 × P
- Certified wires (Grade X or better) with NIST traceability
- Use of ULM or precision micrometer with controlled gaging force
- Environmental stabilization for accurate readings
- Thread pitch diameter formulas:
- Metric: E = M - 3W + 0.866025P
- Unified: E = M - 3W + 1.5155P
- Measurements taken at front, center, and rear of thread
Step 4: Thread Form Verification
- Thread lead accuracy
- Flank angle verification (when applicable)
- Truncation and surface finish evaluation
This meticulous process ensures your gages meet the highest standards for both performance and compliance—especially in regulated industries where precision is mission-critical.
Calibration Standards & Traceability
Accurate go no go gage calibration starts with reliable reference standards. Our calibration processes are built on a foundation of NIST-traceable artifacts and globally recognized thread standards to ensure consistency, repeatability, and audit-ready documentation.
Industry-Recognized Primary Standards
- NIST-traceable thread wire sets
- Certified gage blocks used for equipment setup
- Master thread plugs for high-precision comparative measurement
Thread Standard Calibration Compliance
Our thread standard calibration procedures meet or exceed all major industry specifications, including:
- ASME B1.3 – Screw Thread Gaging Systems
- ASME B1.2 – Gages and Gaging for Unified Screw Threads
- ISO 1502 – General-purpose metric screw threads
- DIN 13 – Metric thread specifications
Tight Measurement Uncertainty
- Typical uncertainty: ±0.0001" (±2.5µm)
- Comprehensive uncertainty budgets calculated per calibration
- Environmental and equipment factors fully accounted for
With traceability to national and international standards, our calibration ensures your thread gages are not only accurate—but verifiably so.
Specialized Thread Plug Calibration Services
Not all threads are created equal—and neither are their calibration requirements. We offer specialized thread calibration services for non-standard, high-precision, and application-specific thread forms across critical industries.
Tapered Thread Plug Calibration
We provide expert calibration for tapered thread plugs used in pressure-tight and fluid-handling systems, including:
- NPT (National Pipe Thread)
- BSPT (British Standard Pipe Taper)
- Metric taper thread forms
Special Form Thread Calibration
Our team is equipped to calibrate complex thread profiles essential to mechanical performance, such as:
- ACME threads for high-load linear motion
- Buttress threads for heavy one-directional force
- Square threads for efficient power transmission
Miniature Thread Calibration
When precision is measured in microns, calibration matters more than ever. We support miniature thread gages used in:
- Medical device manufacturing
- High-density electronic components
- Precision instruments and tools
Industry-Specific Applications
Precision thread gage calibration is mission-critical in industries where failure isn't an option. We serve high-reliability sectors with strict regulatory, performance, and environmental demands.
Medical Device Manufacturing
In medical manufacturing, thread tolerances can be as tight as ±0.0001". We support manufacturers in meeting FDA and ISO requirements with highly accurate calibration for:
- Orthopedic screws and fixation plates
- Dental implants and prosthetic components
- Surgical instruments and threaded assemblies
Key compliance factors:
- Biocompatibility material verification
- FDA validation and audit readiness
- Compatibility with sterilization processes
Aerospace & Defense
From jet engines to structural fasteners, threads used in aerospace and defense must perform under extreme conditions. Our calibration services ensure reliability for:
- Engine fasteners and pressure fittings
- Flight-critical structural components
- Safety and mission-critical assemblies
Industry standards met:
- AS9100 quality management systems
- Military and defense specifications
- NADCAP audit support and traceability
Environmental demands addressed:
- Wide temperature fluctuations
- Vibration and shock resilience
- Corrosion and oxidation resistance
Biotechnology
In biotech, thread failures can lead to contamination, leaks, or loss of precision in automated systems. We calibrate thread gages for:
- Analytical and diagnostic instrument connections
- Fluid transfer and sampling systems
- Precision parts in lab automation equipment
Critical calibration goals:
- Chemical and material compatibility
- Contamination and particulate control
- Leak-tight performance for cleanroom and sterile environments
On-Site vs. Laboratory Calibration
We offer both on-site and lab-based thread gage calibration to meet your operational needs—whether you need maximum precision or minimal disruption.
Laboratory Calibration Advantages
For the highest level of accuracy and traceability, lab calibration is ideal:
- Stable, temperature-controlled environment (20°C ± 1°C)
- Advanced, high-precision equipment
- Lower overall measurement uncertainty
- Full inventory of certified thread wire sizes for all gage types
On-Site Calibration Benefits
When speed, convenience, or logistics matter, on-site service offers key advantages:
- Avoids risk from shipping delicate or oversized gages
- Reduces production downtime with faster turnaround
- Immediate calibration results and documentation
- Ideal for large, fragile, or high-value gages
Capacity at a Glance
- On-Site Calibration: Up to 8" diameter
- Laboratory Calibration: Up to 40" diameter
Thread Gage Repair & Restoration Services
When precision tools show signs of wear or damage, repair can be a smart alternative to full replacement. Our thread gage repair and restoration services help extend gage life, maintain accuracy, and reduce costs.
Common Thread Plug Gage Issues
- Thread wear from repeated use
- Damage caused by improper handling or misuse
- Contamination or debris buildup affecting measurement accuracy
- Loose or damaged handles compromising functionality
Our Repair Capabilities
- Precision thread rework and refinishing
- Handle repair or full replacement
- Surface treatment touch-up for corrosion resistance and finish integrity
- Custom modifications to meet unique specifications
Calibration Intervals and Maintenance
Keeping thread gages accurate over time requires more than just occasional checks—it demands a proactive approach to calibration and care. Based on usage and environment, recommended calibration intervals help ensure consistent performance and compliance.
Recommended Calibration Intervals
- Production Use: Every 6–12 months
- Laboratory/Inspection Use: Every 12 months
- Occasional or Backup Use: Every 24 months
What Affects Calibration Frequency?
- Frequency and intensity of use
- Harsh or contaminated environments
- Threaded material hardness and wear impact
- Gage design and build quality
- History of measurement drift or instability
Preventive Maintenance Best Practices
- Store gages in protective cases and temperature-stable areas
- Clean threads regularly to prevent debris buildup
- Handle with care to avoid impact damage or distortion
- Shield from moisture, chemicals, and extreme conditions
Thread Measurement Troubleshooting
Even the most precise calibration processes can encounter issues. Our thread measurement troubleshooting protocols are designed to quickly identify and resolve errors that could compromise accuracy and compliance.
Common Calibration Challenges
- Incorrect wire size selection for pitch diameter measurement
- Inconsistent gaging force during measurement
- Temperature fluctuations affecting material expansion
- Improper setup geometry or alignment issues
Diagnostic Procedures
- Repeatability testing to isolate variability
- Cross-checking against known standards
- Equipment accuracy verification and certification checks
- Continuous environmental monitoring for temperature and humidity
Effective Corrective Actions
- Targeted adjustments to equipment or setup
- Recalibration of affected tools or instruments
- Staff training refreshers on proper calibration techniques
- Process reviews and improvements to prevent recurrence
Thread Plug Gage Calibration FAQ
- Have questions about thread gage calibration? Here are answers to some of the most common inquiries from quality professionals and engineers:
- How accurate are thread plug gage calibrations?
Our calibrations typically achieve measurement uncertainty as low as ±0.0001", depending on gage type, method, and environmental conditions.
- What’s the difference between Go and No-Go gages?
Go gages confirm that a thread meets minimum dimensional limits, while No-Go gages ensure it doesn’t exceed maximum tolerances—together verifying pass/fail compliance.
- Can damaged thread gages be repaired?
Yes, many thread gages with wear, surface damage, or handle issues can be repaired and restored to calibration standards, depending on the severity.
- How do I select the correct thread wire size?
Wire size depends on the thread pitch and type. We use industry-standard formulas to calculate best-size wires and ensure NIST-traceable certification.
- What environmental conditions are required for calibration?
Laboratory calibrations are performed at 20°C ± 1°C with controlled humidity. On-site calibrations are monitored for temperature and stability to meet standards.
- How often should thread gages be calibrated?
Typical intervals range from 6–12 months for production use and up to 24 months for occasional use. Frequency may vary based on wear, environment, and application.
- What documentation is provided with calibration?
All calibrations include ISO/IEC 17025-accredited certificates with measurement data, traceability to national standards, uncertainty values, and technician credentials.
Ready to get started?
✅ Request a Quote — Get pricing tailored to your specific multimeter and service needs.
✅ Find a Location Near You — Access SIMCO’s nationwide network of accredited labs or schedule on-site service.
✅ Explore Our Full Range of Calibration Services — From multimeters to oscilloscopes and environmental chambers, we cover it all.
When accuracy matters, trust SIMCO to keep your equipment compliant, audit-ready, and performing at its best.
